The Architecture of the Ellipse
What is an ellipse? In structural drawing, it is the precise geometric translation of a circle resting on a plane in perspective. While there are complex mathematical formulas defining its arc, our goal as illustrators is to understand its spatial behavior.
Failing to construct an accurate ellipse instantly breaks the illusion of three-dimensional volume. However, by mastering a few unbending rules of planar geometry, you can overcome the most common drafting errors and ensure your cylindrical forms—whether they are blood vessels, optical lenses, or architectural columns—possess unassailable structural integrity.
The Studio Toolbox

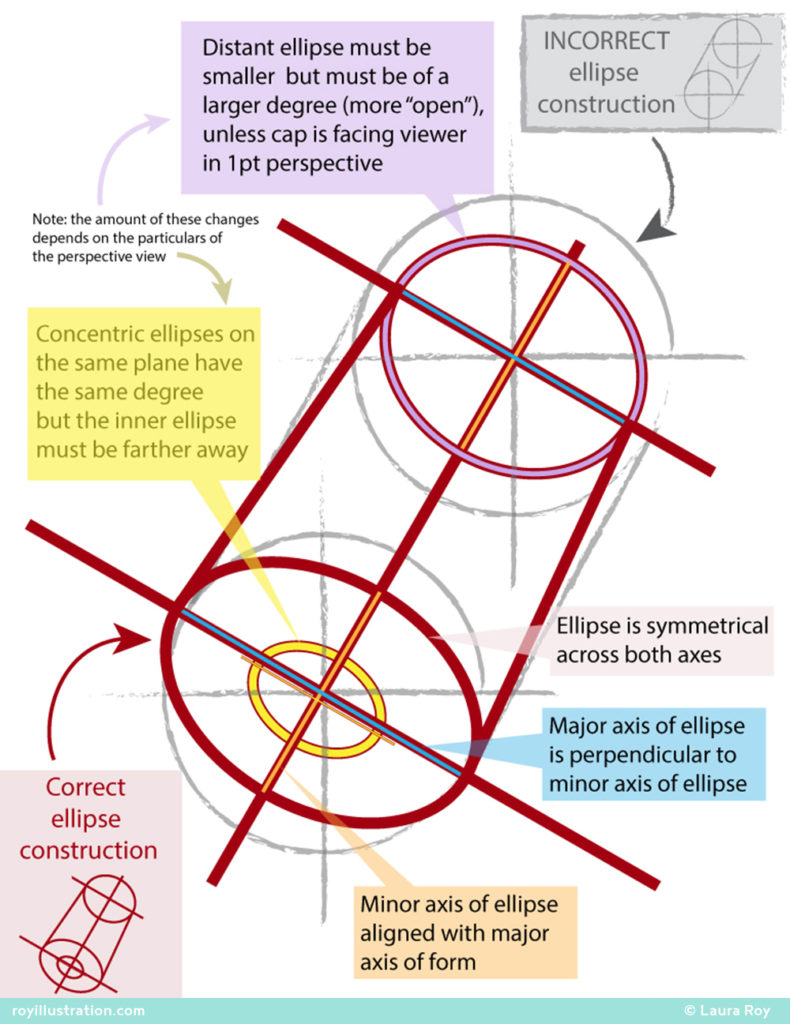

Core Geometric Principles
Before tackling complex forms, you must understand the anatomy of the ellipse itself. The minor axis is the linchpin of your entire drawing; it dictates the orientation of the shape in space.
The Symmetry Rule: A true ellipse is always perfectly symmetrical across both its major and minor axes.
The Perpendicular Rule: The major axis (the longest span of the ellipse) is always exactly perpendicular (90 degrees) to the minor axis (the shortest span).
The Form Alignment Rule: The minor axis of the ellipse must perfectly align with the major axis of the physical form (e.g., the center spine of a cylinder).
The Studio Toolbox
Core Geometric Principles
Before tackling complex forms, you must understand the anatomy of the ellipse itself. The minor axis is the linchpin of your entire drawing; it dictates the orientation of the shape in space.
The Symmetry Rule: A true ellipse is always perfectly symmetrical across both its major and minor axes.
The Perpendicular Rule: The major axis (the longest span of the ellipse) is always exactly perpendicular (90 degrees) to the minor axis (the shortest span).
The Form Alignment Rule: The minor axis of the ellipse must perfectly align with the major axis of the physical form (e.g., the center spine of a cylinder).
Perspective Mechanics:
The Cylinder Caps
A cylinder is defined by two ellipses (caps). Because they exist at different depths in space, they almost never look identical.

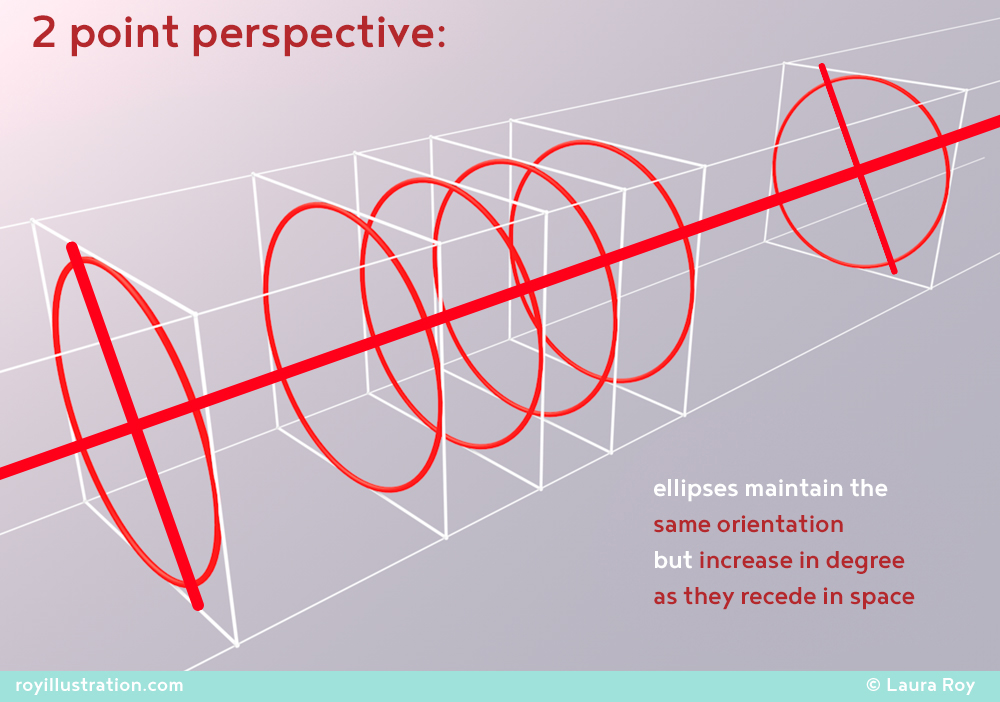

2-Point & 3-Point Perspective: As the cylinder recedes away from you, the distant ellipse must be smaller overall (diminution), but it must have a larger degree (meaning it appears wider or more "open" than the front cap).

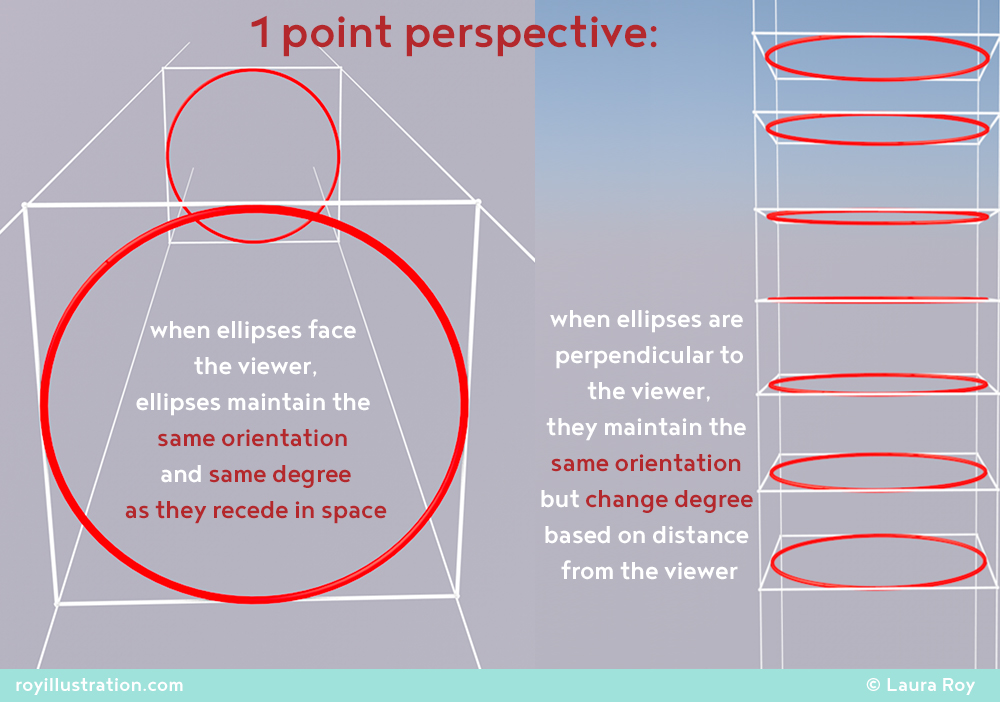

1-Point Perspective (Facing Viewer): If the front cap is perfectly parallel to your picture plane, the distant ellipse will get smaller, but it will maintain the exact same degree.
1-Point Perspective (Side Facing Viewer): If the cylinder is sliding laterally across your vision, the ellipse that is further away from your center of vision (the station point) will be of a larger, more "open" degree.
Perspective Mechanics:
The Cylinder Caps
A cylinder is defined by two ellipses (caps). Because they exist at different depths in space, they almost never look identical.
2-Point & 3-Point Perspective: As the cylinder recedes away from you, the distant ellipse must be smaller overall (diminution), but it must have a larger degree (meaning it appears wider or more "open" than the front cap).
1-Point Perspective (Facing Viewer): If the front cap is perfectly parallel to your picture plane, the distant ellipse will get smaller, but it will maintain the exact same degree.
1-Point Perspective (Side Facing Viewer): If the cylinder is sliding laterally across your vision, the ellipse that is further away from your center of vision (the station point) will be of a larger, more "open" degree.

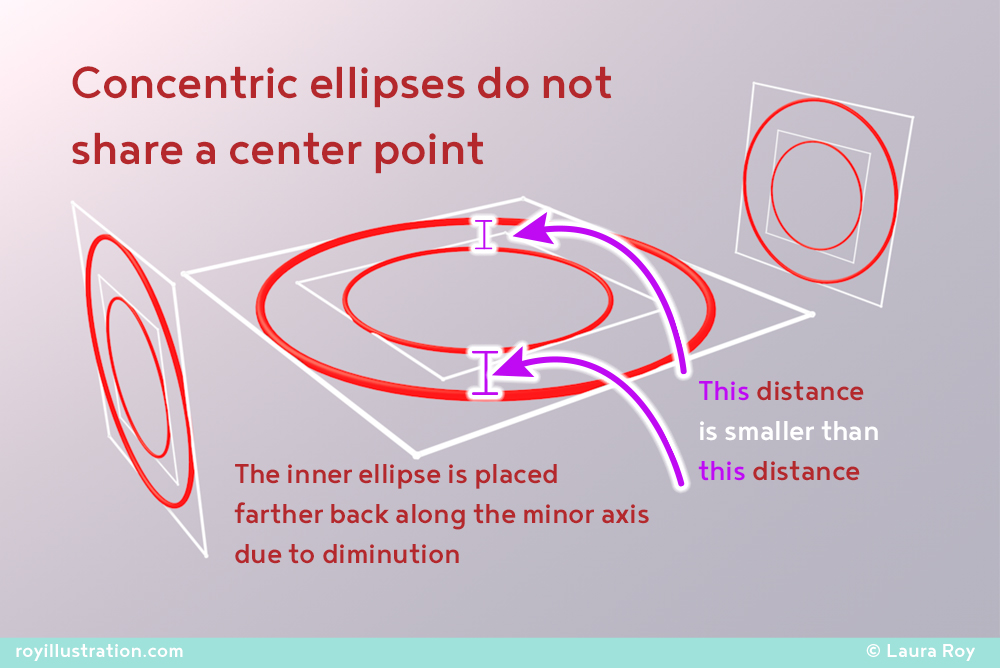

Perspective in Action:
Concentric Ellipses
When drawing concentric circles (like the rim of a test tube or the layers of an artery) on the same perspective plane, the rules shift slightly.
Concentric ellipses share the same degree and the same minor axis.
However, because of perspective distortion, their mathematical centers do not perfectly align. The inner ellipse must be pushed slightly "back" (further away) along the minor axis.
Perspective in Action:
Concentric Ellipses
When drawing concentric circles (like the rim of a test tube or the layers of an artery) on the same perspective plane, the rules shift slightly.
Concentric ellipses share the same degree and the same minor axis.
However, because of perspective distortion, their mathematical centers do not perfectly align. The inner ellipse must be pushed slightly "back" (further away) along the minor axis.
Putting it into Practice:
Common Structural Pitfalls
Even seasoned illustrators fall into these mechanical traps. Always check your work against this list:
The Flat Axis Trap: Drawing the major and minor axes perfectly horizontal and vertical on the page, rather than tilting them to align with the perspective of the form.
The Skewed Axis: Aligning the minor axis correctly with the form, but failing to keep the major axis perfectly perpendicular to it. This results in a lumpy, tilted, or "slanted" ellipse.
The Axis Swap (The "Football"): Orienting the axes correctly, but accidentally aligning the major axis of the ellipse with the major axis of the cylinder. This creates an oblong, pill-like shape instead of a circle in perspective.
The Parallel Cap Error: Drawing both the front and back ellipses of a cylinder at the exact same degree in 2-point perspective, ignoring the natural divergence of space.
The Symmetry Failure: Freehanding an ellipse that is heavier or wider on one quadrant than the others.
Putting it into Practice:
Common Structural Pitfalls
Even seasoned illustrators fall into these mechanical traps. Always check your work against this list:
The Flat Axis Trap: Drawing the major and minor axes perfectly horizontal and vertical on the page, rather than tilting them to align with the perspective of the form.
The Skewed Axis: Aligning the minor axis correctly with the form, but failing to keep the major axis perfectly perpendicular to it. This results in a lumpy, tilted, or "slanted" ellipse.
The Axis Swap (The "Football"): Orienting the axes correctly, but accidentally aligning the major axis of the ellipse with the major axis of the cylinder. This creates an oblong, pill-like shape instead of a circle in perspective.
The Parallel Cap Error: Drawing both the front and back ellipses of a cylinder at the exact same degree in 2-point perspective, ignoring the natural divergence of space.
The Symmetry Failure: Freehanding an ellipse that is heavier or wider on one quadrant than the others.

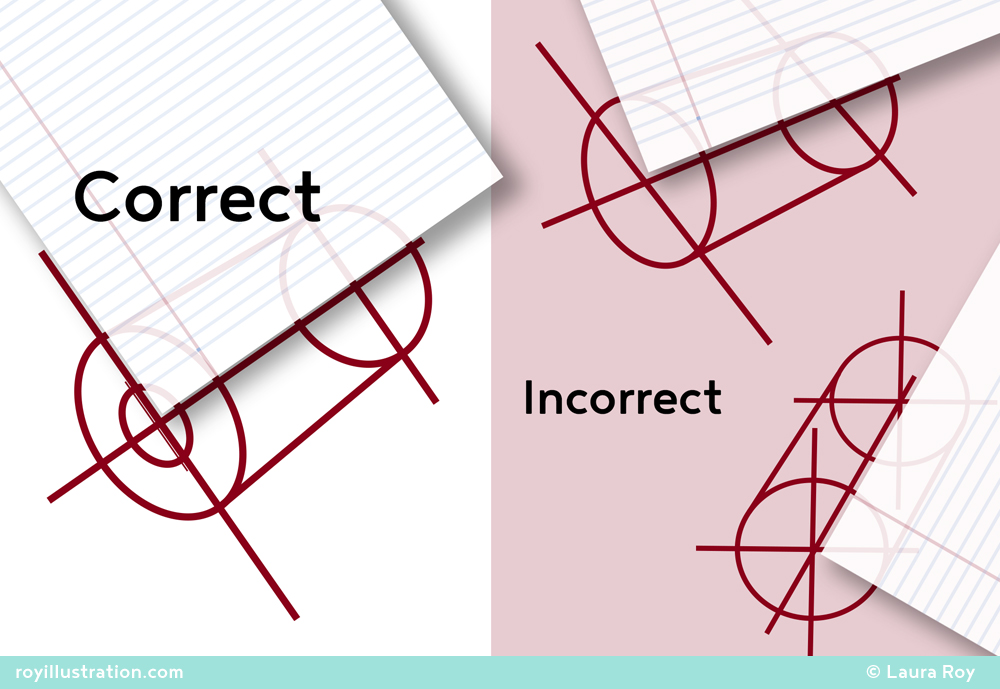

Checking Your Work:
The 90-Degree Studio Test
If a cylinder feels "off" but you can't figure out why, use this physical test: Take a physical piece of paper and hold the 90-degree corner directly over the exact center of your drawn ellipse (where the major and minor axes meet). If you have constructed it correctly, one edge of the paper should perfectly bisect the center spine of your cylinder, and the other edge should perfectly bisect the widest points of your ellipse.
Checking Your Work:
The 90-Degree Studio Test
If a cylinder feels "off" but you can't figure out why, use this physical test: Take a physical piece of paper and hold the 90-degree corner directly over the exact center of your drawn ellipse (where the major and minor axes meet). If you have constructed it correctly, one edge of the paper should perfectly bisect the center spine of your cylinder, and the other edge should perfectly bisect the widest points of your ellipse.
Key Takeaways
Ellipses Exist in Space
An ellipse turns with the form, its axes are rigidly perpendicular, and multiple ellipses on a single form will always vary in size and degree based on their relationship to your eye level.
Key Takeaways
Ellipses Exist in Space
An ellipse turns with the form, its axes are rigidly perpendicular, and multiple ellipses on a single form will always vary in size and degree based on their relationship to your eye level.
Did you find this helpful? Do you have any of your own tips you'd like to share? I'd love to hear about it if you decide to try something new. If you use it differently, I'd love to hear that, too!
-Laura
